What is an HDMI Extender?

What is an HDMI Extender?


In today's high-definition world, the limitations of standard HDMI cable length can be problematic when connecting devices like gaming consoles, DVD players, or computers to TVs or projectors located a significant distance away. HDMI extenders are the technological solution to this issue, enabling HDMI signal transmission over greater lengths than standard cables can provide.

This article explores the ins and outs of HDMI extenders, including how they work, the various types available, and their practical applications. Depending on your needs, HDMI extenders come in both wired and wireless forms, each catering to different distance requirements and configurations.

HDMI signals typically weaken over long cable runs, leading to signal attenuation. While active HDMI cables can cover more distance, they have their limitations. HDMI extenders circumvent this limitation by converting HDMI signals into a form that can be transmitted over Ethernet cables, which can then be converted back into HDMI at the receiving end.

This conversion process allows for the extension of HDMI signals to one or multiple displays much further away than the HDMI standard permits, often up to hundreds of feet, without a loss in video resolution or frame rate.

In essence, HDMI extenders offer a versatile and technically proficient solution to the problem of extending HDMI signals over long distances, ensuring that both visual and audio quality are maintained whether the application is for home theaters, office presentations, or digital signage in a commercial setting.

What Do HDMI Extenders Do?

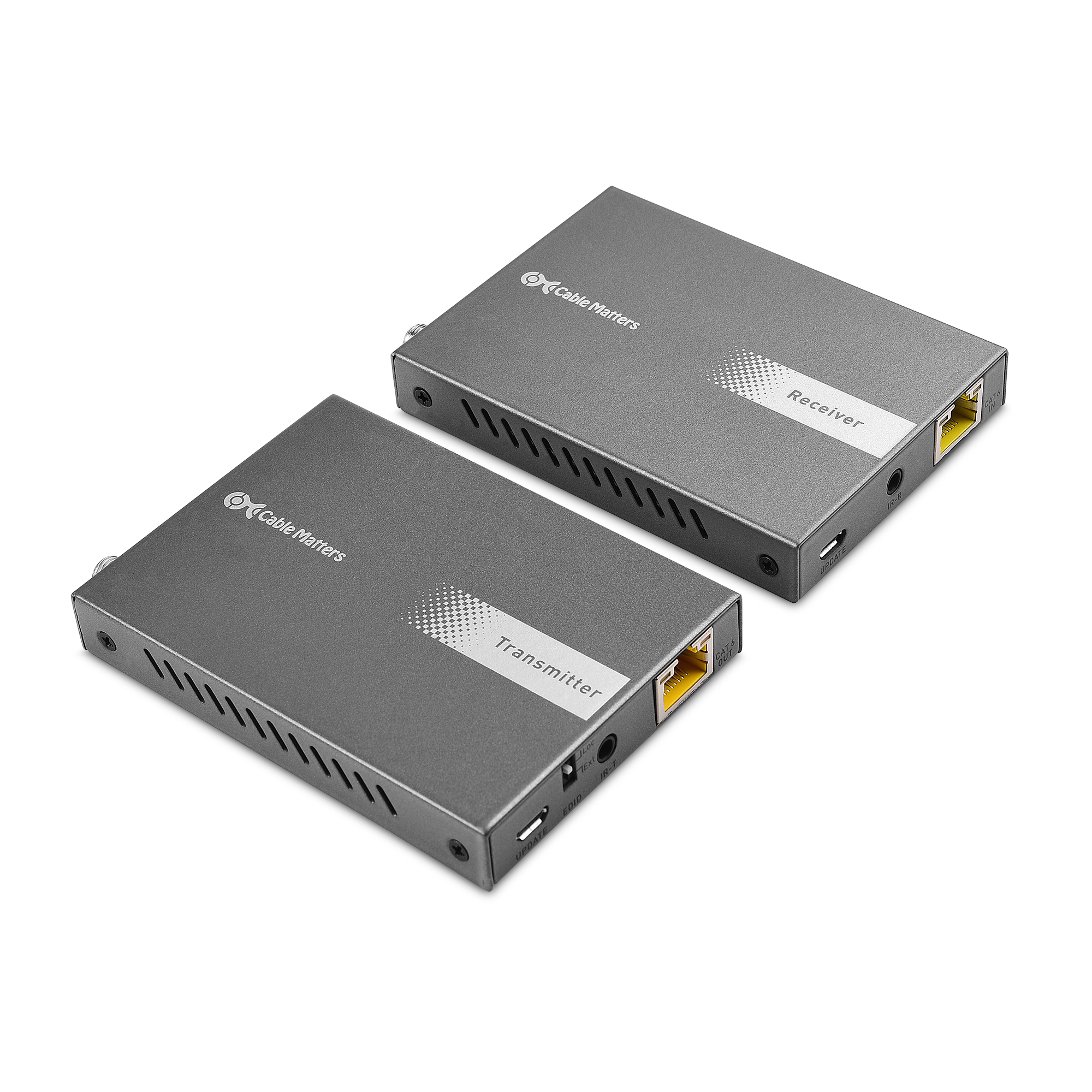

An HDMI extender is designed to overcome standard HDMI cables' distance limitations. When the distance between an audio/video source (like a Blu-ray player, game console, or computer) and the display device (such as a TV or projector) exceeds the range of a passive or active HDMI cable, an HDMI extender becomes essential. Its primary purpose is to ensure that high-definition audio and video signals can travel further than HDMI cables allow without losing quality.

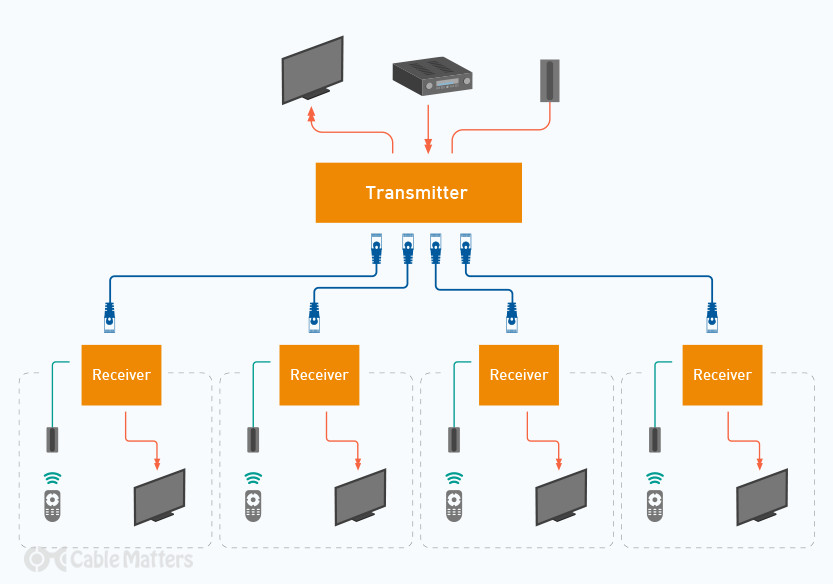

An HDMI extender takes the HDMI connection from a source in one end and converts it into an Ethernet connection using a balun, or balanced to unbalanced transformer. You can then run single, or multiple Cat 5e or Cat 6 Ethernet cables over much greater distances, and connect them to receivers on the other end. The receivers convert the signal back into an HDMI connection for connecting to the display(s). The conversion process depends on the type of extender used; some common types include those that use CAT5/6 networking cables, coaxial cables, fiber optic cables, or even wireless technology. Each type has its own set of advantages, with wired options generally providing more stable connections over longer distances, while wireless extenders offer more flexibility and ease of installation.

Utilizing HDMI extenders has numerous benefits, making them invaluable in various setups. Firstly, they enable users to set up AV systems in large homes, offices, or commercial spaces without worrying about the constraints of HDMI cable lengths. This capability is particularly useful in scenarios where the source device needs to remain hidden or far away from the display, such as in-home theaters, digital signage applications, or in situations requiring secure or remote placement of devices.

Moreover, HDMI extenders can significantly enhance the quality of presentations and entertainment setups by ensuring that the integrity of the audio and video signals is maintained over long distances. This feature is critical for maintaining immersive experiences in home theaters, clear and effective communication in corporate or educational settings and engaging visuals in retail or hospitality environments.

What Do HDMI Extenders Do?

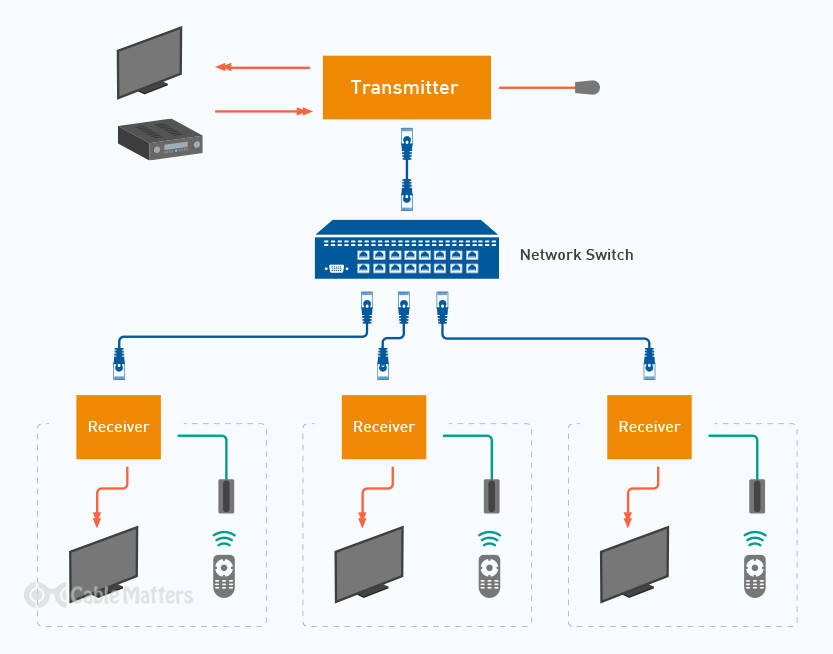

In practice, HDMI extenders function by converting the HDMI signal from the source into an Ethernet signal through a balun, enabling the transmission over greater distances using one or more CAT 5e or CAT 6 Ethernet cables to a receiver that converts it back into an HDMI signal for the display. These extenders can be directly connected with Ethernet cables or through an unmanaged network switch, offering scalability with the addition of extenders and splitters for reaching multiple displays. Some models provide outputs to four separate displays from a single source, enhancing distribution flexibility.

A notable feature of HDMI extenders is their ability to transmit infrared (IR) remote signals, allowing users to control the video source as if it were directly connected to the display via a standard HDMI connection. This feature adds a layer of convenience, enabling seamless interaction with the source content from the location of the display.

What Do HDMI Extenders Do?

HDMI Extender vs. Active HDMI Cable

Most HDMI cables used to connect people’s TVs to Blu-ray players, games consoles, or laptops, will be passive cables. Those can stretch a few feet without any risk of the signal degrading, but if you want to stretch that connection by 10 or more feet, especially with a newer-generation standard like HDMI 2.1, you need an active HDMI cable.
Active HDMI cables use signal boosters to enhance the HDMI signal along its length, allowing it to travel further down longer cables without issue. But even then, HDMI 2.0 cables can hit a maximum range of around 100ft, while an active HDMI 2.1 cable is limited to just 25ft.

HDMI extenders, on the other hand, can handle UHD 4K video at well over 100ft, and a more standard 1080p video transmission at over 300ft, without any concern for the signal quality. They also support Dolby True HD Audio, and DTS-HD Master lossless audio across those distances, too, with no need for additional audio cables.

They can even split that signal between multiple displays, making HDMI extenders not only a great solution for transmitting to TVs a long distance from the source, they’re great for duplicating that content across multiple displays.

This can be super handy for digital signage, classrooms, boardrooms, showcasing gaming footage on a larger communal screen, or for mirroring sports footage in a bar.

If you want to expand your HDMI extender connection to more displays in the future, most splitters also support the ability to add more displays with additional receivers, too. Do note, however, that the greater the number of displays and the greater the distance and conversions between the source and the display, the greater the chance of signal attenuation.

HDMI Extender Types: Wired vs. Wireless

HDMI extenders come in two primary types: wired and wireless, each serving different needs depending on the setup.

Wired HDMI extenders are known for their reliability and use physical cables to connect the source to the display. HDMI extenders over Ethernet use CAT5e or CAT6 cables which can efficiently extend HDMI signals up to 100 meters. This is ideal for use in large spaces like conference centers and schools. Generally, these products require a dedicated network infrastructure. Using shielded CAT6A cables will usually allow for longer lengths or in a high RFI/EMI area.

Another wired option is HDMI over coaxial cable extenders, which are great for long-distance transmission, up to 300 meters using existing coaxial lines in buildings. This is especially useful where Ethernet cabling is not feasible and major rewiring isn’t an option.

Wireless HDMI extenders, on the other hand, offer convenience by eliminating cables. They can face interference issues, but recent advancements have improved their performance markedly. Extenders that use Wi-Fi and Bluetooth are suitable for home use, allowing streaming of HD content without the clutter of wires and providing a clean setup.

For high-quality video transmission without cables, WHDI (Wireless Home Digital Interface) extenders are beneficial. They operate on the 5GHz frequency, which is less prone to interference and can handle 1080p video content over distances of up to 30 meters within the same room, making them ideal for home theaters and gaming setups.

Each type of HDMI extender serves its purpose well, whether it’s the consistent performance and longer range of wired extenders or the installation simplicity and neat appearance of wireless options. The choice between them depends on the specifics of your audio and video setup and what you prioritize—signal stability and range, or ease of setup and minimalism.

HDMI Extender Capabilities: Quality & Range

The transmission range of HDMI extenders can significantly exceed the limitations of standard HDMI cables, which are generally restricted to about 10 meters (33 feet) before signal degradation. Wired HDMI extenders, using ethernet or coaxial cables, can reliably extend HDMI signals up to 100 meters (328 feet) and, in some cases, up to 300 meters (984 feet) without quality loss. Wireless HDMI extenders, while offering a more flexible and cleaner setup, typically support shorter distances, ranging from 10 meters (33 feet) to around 30 meters (100 feet), depending on the technology and environment.

The maximum range of your connection is dependent on the HDMI extender you use, the resolution and frame rate you need, how many displays you’re connecting to, and the category of Ethernet cable you use to make the connection. Some HDMI extenders offer 4k 30Hz connections to around 130 feet, and 1080p connections at up to 230 feet, while others can manage almost 330 feet for a single 1080p display.

HDMI Extender Capabilities: Quality & Range

You’ll want to use the best cabling possible to guarantee a strong signal across the most extreme of distances, with Cat 6 cables offering the best connection with most commercial HDMI extenders. It’s also important to buy cables that are foil-wrapped and properly shielded. If you plan to run the cable through the wall, make sure to opt for cables rated for such routing, otherwise, there is an increased risk of fire.

When it comes to transmission quality, HDMI extenders are designed to maintain the integrity of the HDMI signal over long distances. Most extenders support full HD (1080p), 4K, and even 8K resolutions, ensuring that high-definition content is transmitted without compromise. Besides, they can handle various formats, including 3D video and multi-channel audio, like Dolby TrueHD and DTS-HD Master Audio, providing an immersive viewing and listening experience.

Bandwidth plays a crucial role in the transmission quality of HDMI extenders, especially for higher resolutions. Extenders need to support sufficient bandwidth to handle the immense amount of data required for 4K and 8K content. Wired extenders generally offer more bandwidth and, thus, better support for high-resolution video and fast refresh rates, resulting in smoother video playback and lower latency.

Signal stability is another critical factor. Wired extenders tend to be less susceptible to interference and can provide a more stable signal over long distances. Wireless extenders, while highly convenient, can sometimes suffer from interference from other wireless devices and obstacles that may affect the signal quality.

An appealing feature of some HDMI extenders is Power Over Cable (PoC) and Power over Ethernet (PoE), which allows the extenders to be powered through the transmission cable itself. This means that only one end of the extender pair (either the transmitter or receiver) needs to be connected to a power source, simplifying installation and reducing clutter. PoC is particularly beneficial in setups where power outlets are scarce or inconveniently located relative to the source or display device.

What to Consider When Choosing an HDMI Extender

When selecting an HDMI extender, various factors come into play to ensure that it meets your specific needs. Let's dive into the primary considerations to keep in mind.

The first and foremost consideration is the required extension distance. HDMI extenders can transmit signals over distances ranging from a few meters to hundreds of meters. Measure the distance between your HDMI source and the display accurately to choose an extender capable of maintaining signal quality over that length. Wired options usually offer longer ranges, while wireless extenders are suitable for shorter distances and more flexible positioning.

Resolution and refresh are also important factors to consider. If you desire a high resolution or refresh rate, the maximum distance you can extend the connection might be limited. If your requirement is 1080p video at a 60hz refresh rate, then you can extend the distance quite a bit further than if your requirement is 4K video at 60hz. Often, the equipment needed to extend 1080p (HD) video is different than the equipment needed to extend 4K (UHD) video

HDMI extenders can vary significantly in price, influenced by their transmission range, resolution support, and additional features. Determine your budget early in the decision-making process, but also consider the potential cost-saving benefits of extenders that utilize existing cable infrastructures, such as Ethernet cabling.

Compatibility is crucial to ensure that the extender works seamlessly with your HDMI source and display devices. Check for HDCP compliance (High-bandwidth Digital Content Protection), supported resolutions, and any specific connectors or technology (such as HDMI 2.0 or HDMI 2.1) required by your devices to avoid compatibility issues.

Consider the complexity of the setup and installation process. Wired extenders may require running cables over long distances and potentially through walls, which can be labor-intensive or require professional help. Wireless extenders offer a more straightforward setup but pay attention to potential signal interference and the optimal placement for transmitters and receivers.

Choosing the right HDMI extender boils down to a balance of these considerations, tailored to your specific scenario and preferences. By assessing each factor carefully, you can ensure a successful extension of your HDMI signals that meets your quality expectations and practical necessities.

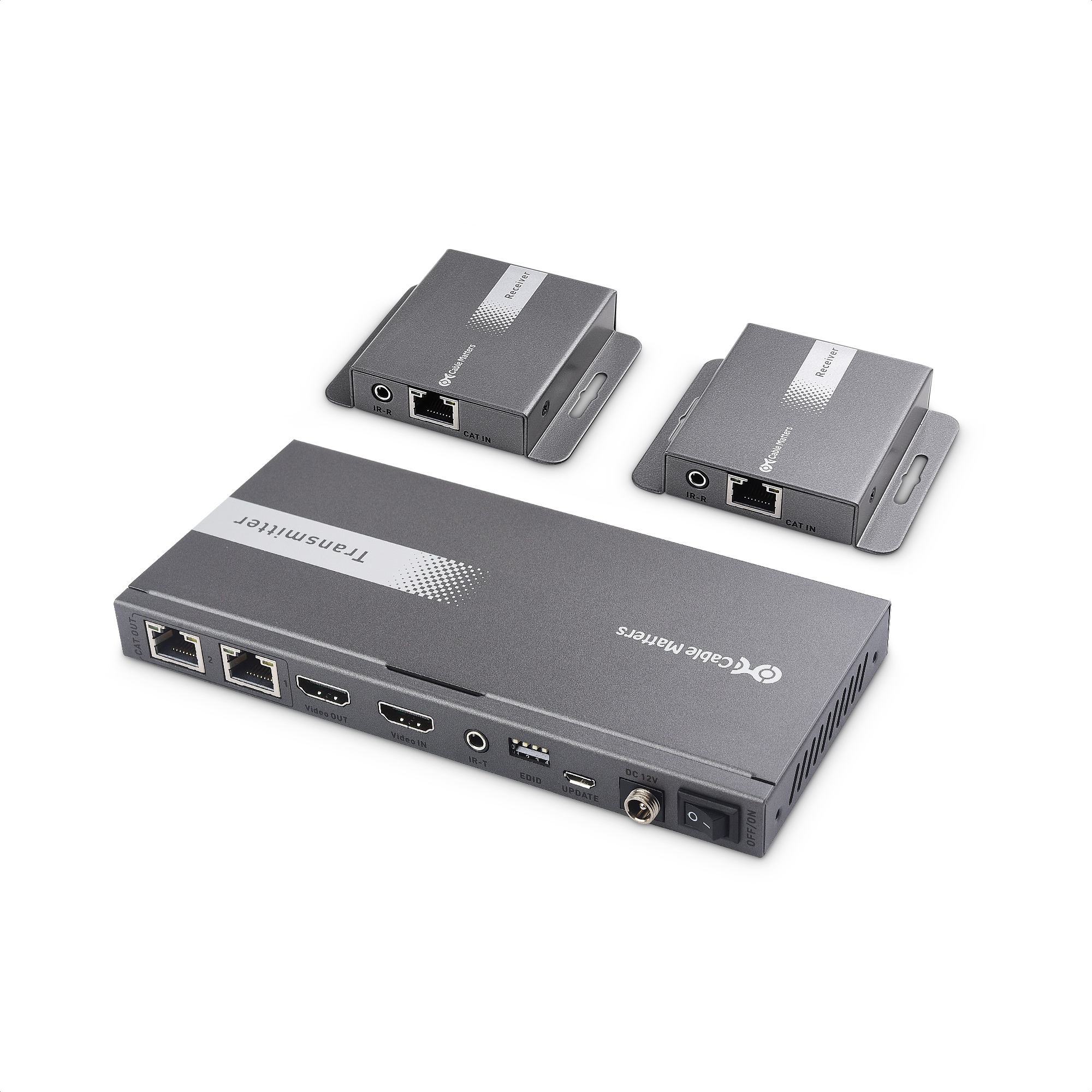

Cable Matters 1x2 2-Port 4K HDMI Extender Splitter

1x2 2-Port 4K HDMI Extender Splitter

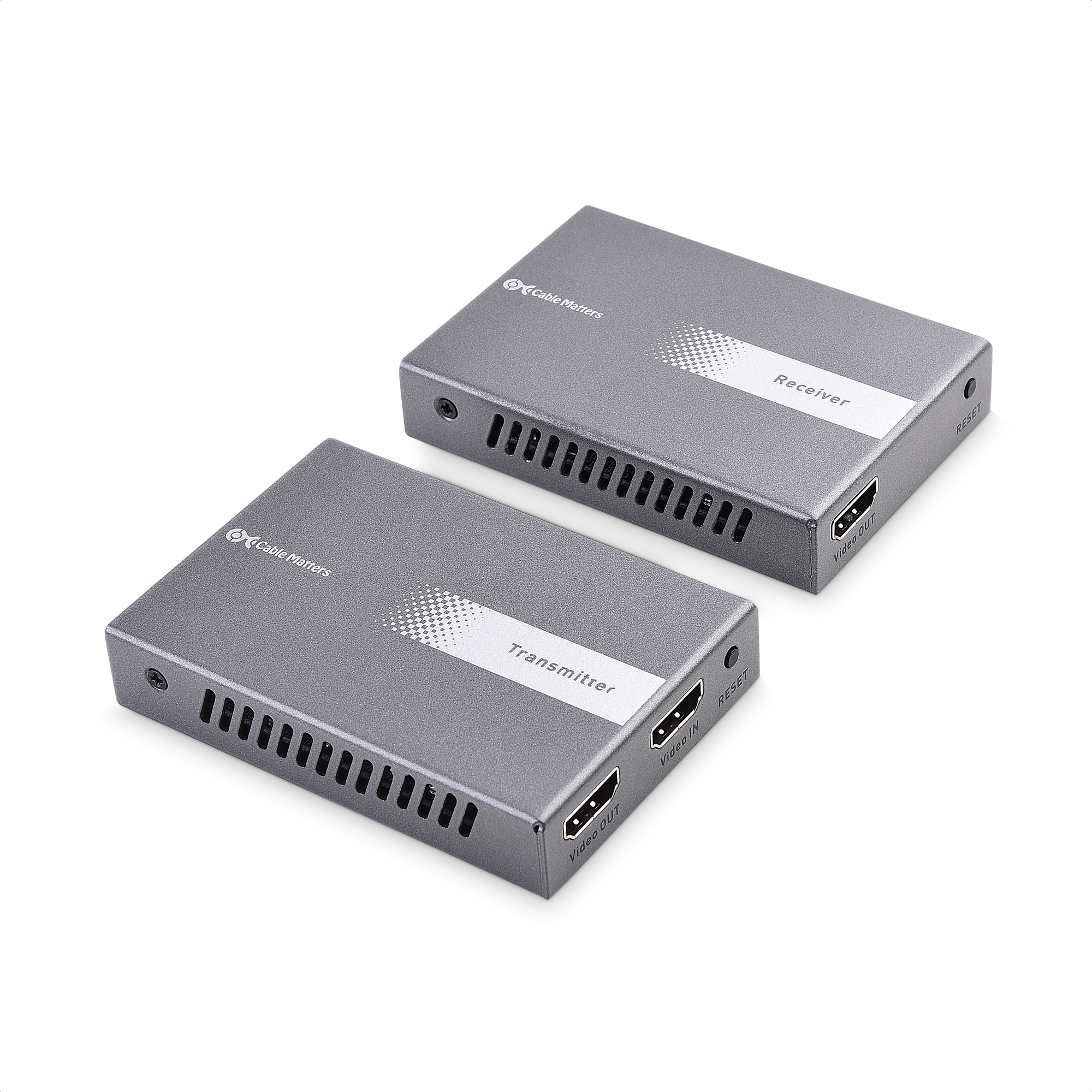

Cable Matters HDMI Over Cat6 Extender

HDMI Over Cat6 Extender

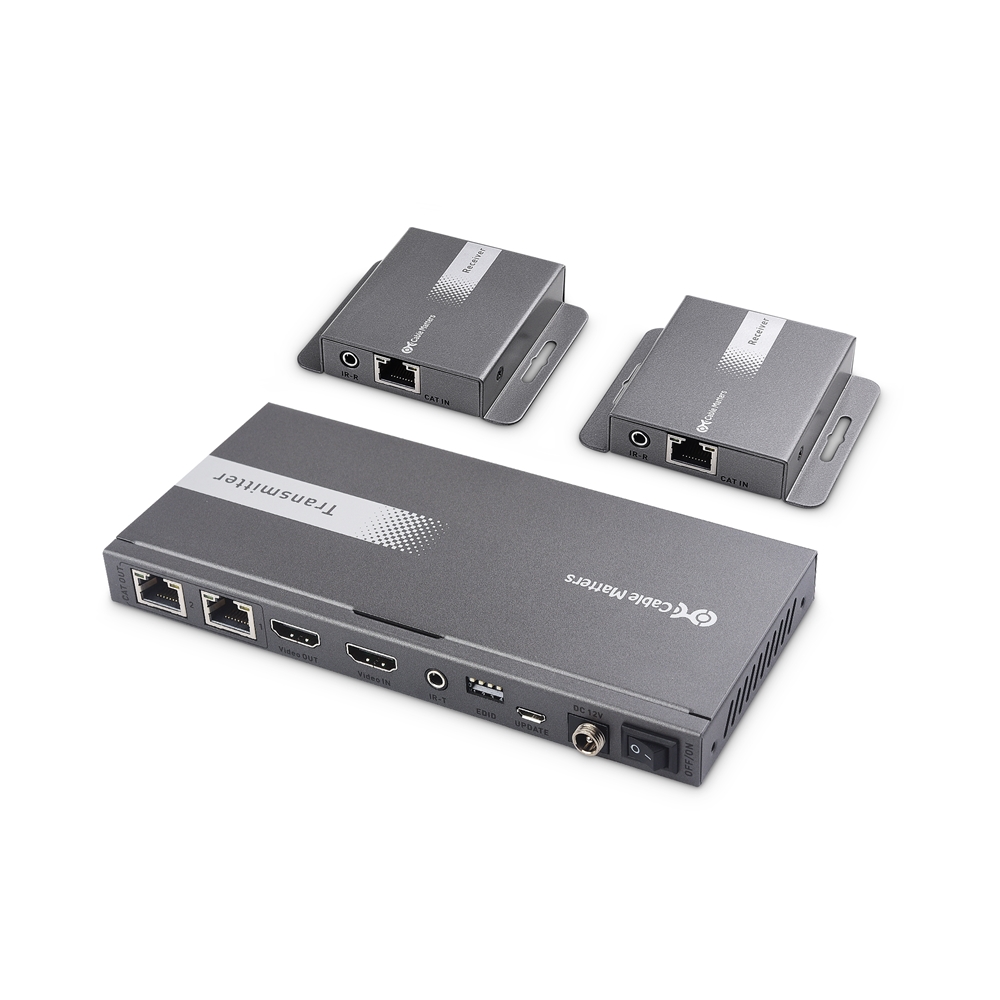

Cable Matters Wall Mounted HDMI 2.0 Extender Balun

Wall Mounted HDMI 2.0 Extender Balun

Common Uses of HDMI Extenders

HDMI extenders have become indispensable tools in both home and commercial settings, bridging the gap between devices and displays over distances where conventional HDMI cables fall short. Their versatility lends them to a wide range of applications, from enhancing home entertainment systems to enabling high-quality digital signage in public spaces.

Home Theater and Entertainment Systems

For movie buffs and enthusiasts looking to create a cinematic experience at home, HDMI extenders are a game-changer. They allow for the centralization of AV equipment, eliminating clutter and keeping devices like Blu-ray players, streaming boxes, and AV receivers tucked away. This setup not only streamlines the aesthetics of living spaces but also enables high-definition content streaming directly to projectors or TVs, even if these are rooms apart.

Gaming Consoles and Virtual Reality (VR) Setups

Gamers, too, benefit significantly from HDMI extenders. They offer the flexibility to position gaming consoles away from the main display, allowing for more organized and spacious gaming environments. This is particularly advantageous for VR setups, where movement is crucial. Extenders maintain the high-resolution visuals and rapid response times essential for immersive gaming experiences, ensuring there's no lag or drop in quality just because the console isn't right next to the screen.

Business and Commercial Applications

In the commercial sector, HDMI extenders play a vital role by enhancing both visual communication and security measures. They enable the seamless streaming of high-quality video content across extensive distances to digital signage and advertising displays in retail spaces, airports, and outdoor environments. This capability ensures that visual messaging remains engaging and informative, effectively capturing attention and conveying key information.

Video Security and Surveillance Systems

Beyond advertising, HDMI extenders are crucial for modern security systems. They facilitate the real-time transmission of high-definition surveillance footage from cameras to control rooms, even over long distances. This application is particularly important in large venues like shopping centers and office buildings, where maintaining clear video surveillance is essential for monitoring purposes and quick response to security incidents. HDMI extenders ensure video feed integrity, supporting effective surveillance and enhancing overall security infrastructure.

Conference Rooms and Presentations

Within business environments, particularly in conference rooms and during presentations, HDMI extenders simplify connectivity. They facilitate the transmission of high-resolution presentations, videos, and conferencing feeds from laptops or corporate computers to large screens or projectors. This not only enhances collaborative efforts but also ensures that visual content is delivered with clarity, making meetings more productive and engaging.

By enabling the extension of HDMI signals over long distances without loss of quality, HDMI extenders have become essential for a wide array of applications. From enhancing home entertainment to boosting business presentations, their utility spans across scenarios, making them invaluable assets in both residential and commercial settings.

For those seeking to utilize the versatility of HDMI extenders, Cable Matters offers a robust selection designed to suit various needs and environments. Whether you're setting up a home theater system or need to secure a commercial space with reliable surveillance, Cable Matters extenders ensure you maintain pristine image quality over extended distances. Explore their range of options and find the perfect fit for your setup. Don't compromise on quality and functionality—discover Cable Matters HDMI extenders today and take the first step towards seamless audio-visual connectivity.

Shop for Cable Matters HDMI Extenders
