In the realm of wired communication, RJ45 and RJ11 are two of the most commonly encountered cable connectors. Both are ubiquitous in telecommunications and networking, but they serve different purposes and are not interchangeable. This article will demystify these connectors, outline their differences, and discuss their specific uses, helping you choose the right one for your needs.

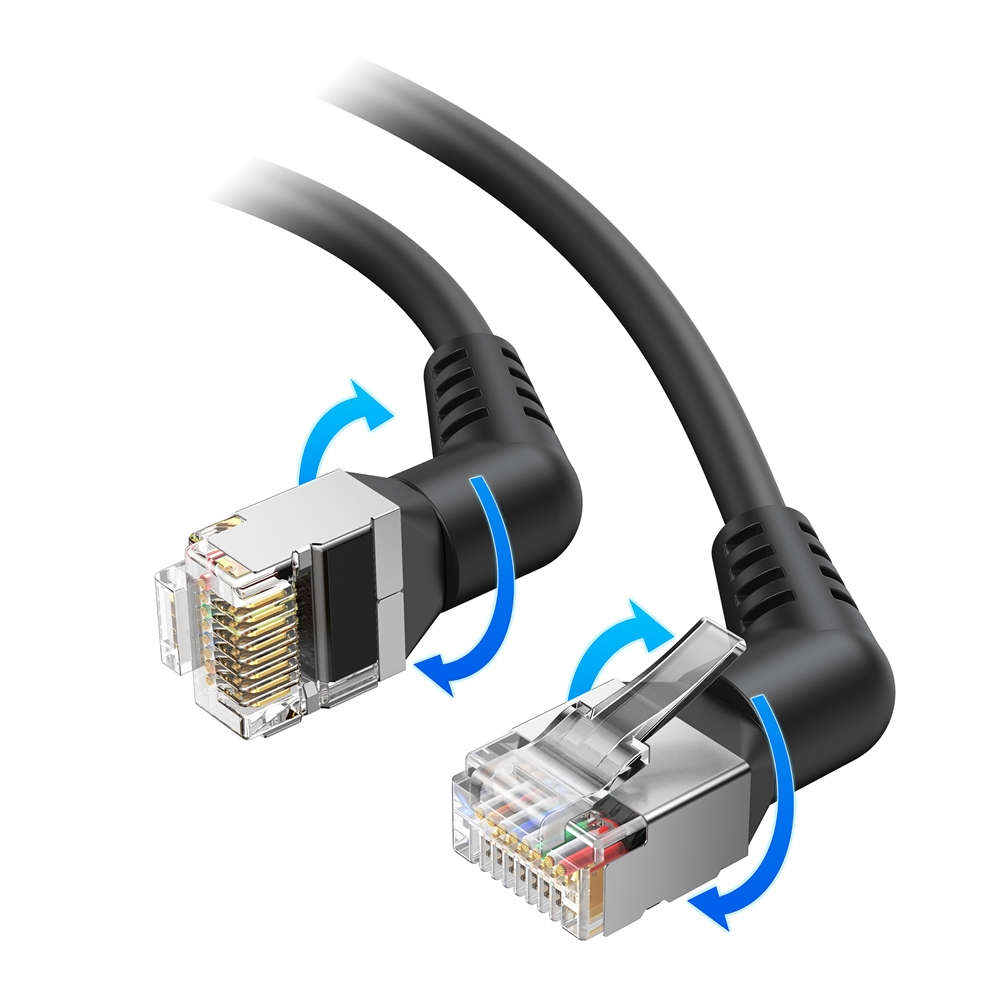

What is RJ45?
RJ45 stands for Registered Jack 45 and is a standard type of connector for network cables, especially used in Ethernet networking. An RJ45 connector has eight pins, which allows it to support the complex and high-speed transmission demands of Ethernet-based systems. These connectors are often used to connect computers, routers, switches, and other network interface devices. RJ45 connectors are commonly used with various categories of Ethernet cables to establish stable and high-speed network connections.
RJ45 Characteristics:
-
Pin Count: 8 pins.
-
Wiring Schemes: T568A and T568B.
-
Bandwidth: Supports high-speed data transmission for Internet and intranet.
-
Category: Commonly used with Cat5, Cat5e, Cat6, and Cat6a cables.
What is RJ11?
RJ11, or Registered Jack 11, is a connector standard primarily used for telephone system wiring. RJ11 connectors usually have a six-position four-contact (6P4C) configuration, which means that there are six possible positions, with four places for contacts, but typically only two contacts (center pins) are actually used for single-line telephone connections. RJ11 connectors are specifically designed to work with analog telephone lines, making them essential for standard telephone systems.
RJ11 Characteristics:
-
Pin Count: Commonly 4 pins (6P4C), sometimes 6 pins (6P6C) for two phone lines.
-
Wiring Schemes: Primarily used for single-line telephone cables.
-
Bandwidth: Suitable for voice transmission with low data rate demands.
-
Category: Mostly used with flat, stranded wire typical of telephone cables.
History and Development of RJ45 and RJ11
Evolution of Modular Connectors
The journey of modular connectors, including RJ11 and RJ45, began in the 1960s when AT&T introduced the first modular connectors for telephone systems. These early connectors revolutionized the way telephone lines were connected and disconnected, simplifying the work of technicians who had to manage complex wiring systems.
As the demands of telecommunications and computer networking grew, so did the design and functionality of these connectors. The 1980s saw the introduction of RJ11 and RJ45 connectors, marking a significant milestone in the evolution of modular connectors. RJ11 was designed to handle analog voice signals in telephone systems, while RJ45 was developed to support the higher data transmission rates required for Ethernet networking and local area networks (LANs).
Today, RJ11 and RJ45 connectors are ubiquitous in telecommunications and computer networking. RJ45 has become the standard connector for Ethernet networking, essential for high-speed digital data transmission in local area networks. Meanwhile, RJ11 remains a staple in telephone systems, connecting millions of homes and businesses to existing telephone lines.

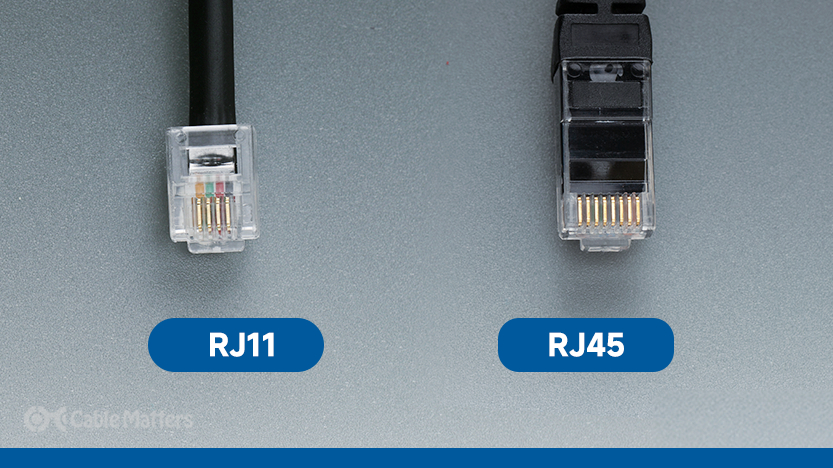

Key Differences Between RJ45 and RJ11
Pin Configuration and Size
The most immediate difference between RJ45 and RJ11 is the number of wires and pins they support. RJ45, with its eight contacts, is larger than the six-contact RJ11. This size difference is intentional to prevent accidental insertion of the wrong plug into a socket, which could cause damage.
Usage and Application: Analog Voice Signals
RJ45 is designed for networking and supports the fast transfer speeds required by Internet and local area networks. RJ11 is designed for telephone lines and supports lower speeds, making it suitable for voice communication and basic telecommunication services.
Cable Compatibility
Although they appear similar, the cables used for RJ45 and RJ11 are different. RJ45 is employed with wider and thicker cables, like those in the Cat5 and Cat6 families, to support Ethernet connectivity. RJ11 uses a thinner, often flat cable, typical in residential and business telephone wiring.
Connector Design
Although a smaller RJ11 plug can physically fit into an RJ45 socket, the reverse cannot occur due to the size difference. RJ11's narrower design is adequate for the less demanding transmission of telephone signals, while RJ45's broader connector accommodates more wires for enhanced data transmission.
RJ45 and RJ11 Wiring Diagrams and Pinouts
RJ11 and RJ45 Wiring Diagrams
Understanding the wiring diagrams and pinouts of RJ11 and RJ45 connectors is crucial for ensuring proper connectivity and data transmission in telecommunications and computer networking.
RJ11 connectors typically use a 2-wire or 4-wire configuration, with the wires connected to the following pins:
-
Pin 1: White/Orange
-
Pin 2: White/Green
-
Pin 3: Blue/White
-
Pin 4: Blue/Green
This configuration is primarily used for single-line telephone connections, making it ideal for analog voice signals and basic telecommunication services.
On the other hand, RJ45 connectors use an 8-wire configuration, with the wires connected to the following pins:
-
Pin 1: White/Orange
-
Pin 2: Orange
-
Pin 3: White/Green
-
Pin 4: Blue
-
Pin 5: White/Blue
-
Pin 6: Green
-
Pin 7: White/Brown
-
Pin 8: Brown
This 8-wire configuration supports the high-speed data transmission required for Ethernet networking, making RJ45 connectors essential for connecting devices in local area networks (LANs) and wide area networks (WANs).
The wiring diagrams and pinouts for RJ11 and RJ45 connectors are standardized by the Telecommunications Industry Association (TIA), ensuring consistency and reliability in telecommunications and computer networking.

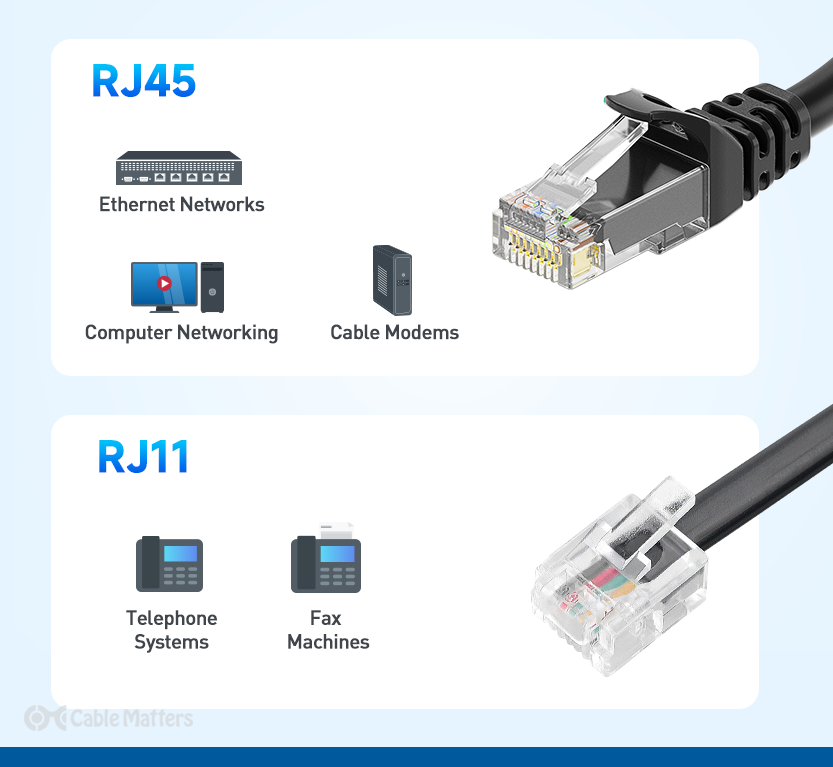

Devices That Use RJ11 or RJ45
Common Applications
RJ11 and RJ45 connectors are integral to a wide range of devices and applications, each serving distinct roles in telecommunications and computer networking.
Telephone Systems: RJ11 connectors are commonly used in telephone systems, including analog voice services and digital subscriber line (DSL) connections. They connect phones, fax machines, and dial-up modems to telephone lines, facilitating voice communication and data transmission.
Ethernet Networks: RJ45 connectors are the standard for Ethernet networking, widely used in local area networks (LANs), wide area networks (WANs), and the internet. They connect computers, printers, switches, and routers, enabling high-speed digital data transmission and robust network connections.
Computer Networking: In computer networking, RJ45 connectors are essential for connecting devices such as computers, printers, and servers to Ethernet networks. They support the high-speed data transfer required for efficient network performance and digital data transmission.
Fax Machines: RJ11 connectors are used in fax machines to connect to telephone lines and transmit fax signals. This application highlights the versatility of RJ11 connectors in handling both voice and data transmission over telephone lines.
Cable Modems: Cable modems use RJ45 connectors to connect to Ethernet networks, providing high-speed internet access. This application underscores the importance of RJ45 connectors in modern digital communication and internet connectivity.
In summary, RJ11 and RJ45 connectors are essential components of modern telecommunications and computer networking systems. They play crucial roles in a wide range of devices and applications, whether connecting telephone lines or enabling high-speed Ethernet networking. These connectors ensure reliable and efficient communication.
When to Use Each
RJ45 Applications in Ethernet Networking:
RJ45 connectors are used for networking purposes, connecting computers, printers, switches, and routers in a local area network (LAN). They are also used in some Power over Ethernet (PoE) applications, carrying both electricity and data to devices like VoIP phones and wireless access points.
RJ11 Applications in Telephone Lines:
RJ11 is used for standard single-line telephone connections, including connecting phones, fax machines, and dial-up modems, and it is used as a line for DSL internet service where it shares the line with voice.
Conclusion
RJ45 and RJ11 connectors are designed for different tasks in the realms of networking and telecommunications. Understanding the distinction between the two is essential for effectively managing and setting up various wired systems. RJ45 connectors are integral to data-rich and performance-demanding networking environments, while RJ11 plugs fit perfectly into the world's extensive telephone systems. Whether setting up a home office, managing a business' communication network, or simply hooking up your telephone, using the correct connector ensures optimal performance and prevents damage to your devices and infrastructure.
