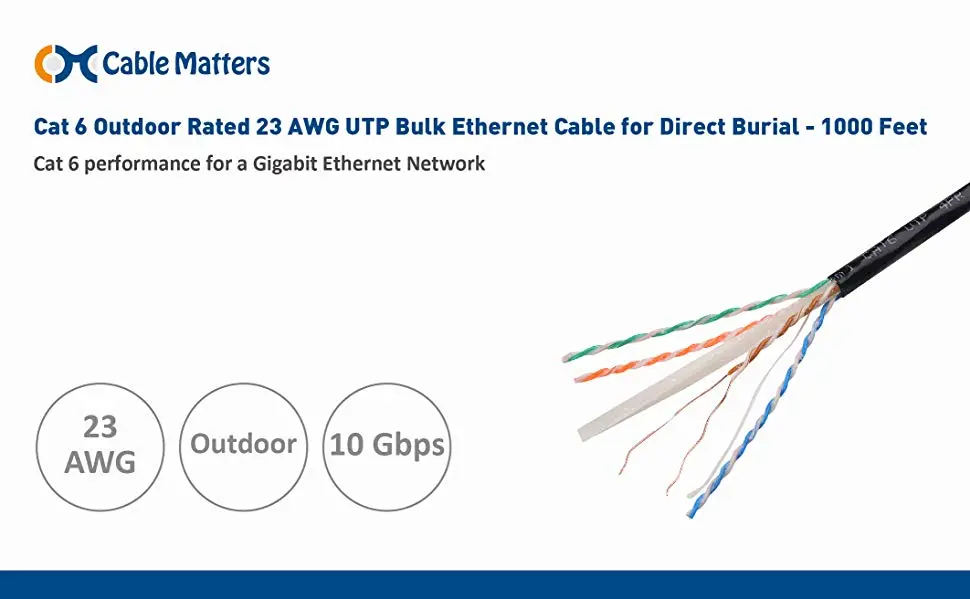

The Cable Matters Cat 6 Outdoor Rated bulk cable is the perfect choice for installing weatherproof security IP cameras outside the home or office. Designed with a UV resistant cable jacket and filled with a water blocking gel compound for direct burial applications.
Gigabit Ethernet Performance
This outdoor-rated bulk cable offers Category 6 performance in compliance with ANSI/TIA/EIA 568-C.2 to support 10 Gigabit and 10/100/1000 Ethernet networks. Supports Power over Ethernet (PoE) and Voice over Internet Protocol (VoIP) applications. Constructed of 23 AWG solid bare, pure copper conductors with a cross-web divider for enhanced performance, lower insertion loss, and cross-talk reduction.
Important Notes
- NEC allows termination inside a building up to 50 feet from the entrance - Gel-fill compound must be removed from the cable ends before termination

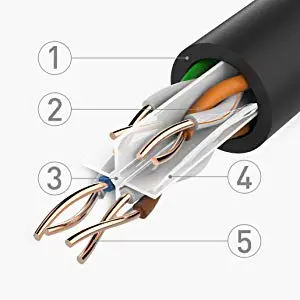

Cat 6 Performance Design
1) UV-Resistant LDPE Jacket
2) HDPE wire insulation
3) Pair separator spine
4 Polyester rip cord
5) 23 AWG solid bare copper conductors
Outdoor-Rated Cat 6 Cable
- UV resistant cable jacket
- Gel-filled for direct burial applications
- Foot marked cable counts down from 1000 feet
UL 444 conforming Bare Copper
- Solid bare copper conductors
- Safer with better performance
- No copper or clad aluminum / steel
Cat 5e vs Cat 6
- Supports 10 Gigabit Ethernet
- 550 MHz rating supports higher bandwidth
- Crosstalk suppression for a clear signal
Larger O.D. Termination
- Cable O.D.: 7.3mm (0.29in)
- Requires larger RJ45 connectors
- Compatible with ASIN B00E4OCOUW
Features
Outdoor rated cat 6, UnShielded Twisted Pair (UTP), solid bulk Ethernet cable is designed for direct burial network applications such as outdoor network surveillance cameras for the home or office; Meets or exceeds Category 6 performance in compliance with the TIA/EIA 568-C.2 standard
23 AWG gel-filled solid bulk cable has a UV sun and weather resistant LDPE jacket; Gel-filled water repellent core withstands extreme temperatures; Solid bare, pure copper (no aluminum) conductors are individually insulated for reliable performance and compatibility with PoE applications
Gigabit Ethernet performance Cat6 cable is enhanced with a 550 MHz bandwidth capacity to provide plenty of headroom for 10 Gig networks; Supports high-speed and high-bandwidth, IP camera, audio/video, and security network cable applications. Equip your network for 10-Gigabit Ethernet with backwards compatibility to 10/100/1000 Ethernet
Superior construction includes a cross web separator to increase strength and performance with pair separation that reduces crosstalk; Longitudinal rip cord assists with jacket opening; Bare 23 AWG copper conductors reduce attenuation to provide a stronger signal at longer distances; Backwards sequential cable lengths marked at two foot intervals let you know how much cable is left on the reel; Fluke test verified to pass for industry standard crosstalk and attenuation tolerances
Compatible with Cat 6 RJ45 connectors and keystone jacks that accept a round cable with a 7.3mm outside diameter; compatible with the Cable Matters RJ45 Cat 6A Shielded Modular Plugs with Strain Relief Boots
