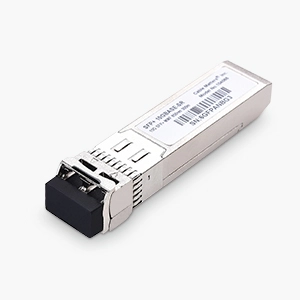

10 Gigabit SFP+ to LC Multimode Transceiver Module
The Cable Matters 10 Gigabit SFP+ to LC Multimode Transceiver Module is rated for the extreme demands of 10 Gigabit Ethernet (10GBASE-SR). It is designed for maximum equipment compatibility with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-SR.
Important Notes
Compatible with both 62.5um and 50um LC cables; It supports OM1, OM2, OM3, and OM4 fiber cables
Compatible with MSA compliant equipment with open source EEPROM
NOT compatible with Dell Networking / Juniper / Mellanox / HP / H3C / Arista / Dell Force10 / Extreme / F5 Networks equipment
Use anti-static protection when connecting or removing the transceivers
Universal MSA Compatibility
Multi-Source Agreement compatible with MSA compliant SFP+ ports
Mechanical Compliance: SFF-8432
Electrical Compliance: SFF-8431
EEPROM Open Source: SFF-8472
10Gbps Application
10G Fiber Channel
10GBASE-SR/SW Ethernet
Low EMI emission
Hot-pluggable with ESD protection
Specifications
Up to 10.7Gb/s data rates
850nm DFB wavelength
SMF links up to 300m
Power supply: 3.3V
Power consumption: 1W
RoHS compliant
Features
Connects a network switch, server, or NIC with SFP+ to a 10 Gigabit fiber channel network with multimode LC for Network Attached Storage (NAS), Storage Area Network (SAN), and High Performance Computing (HPC) applications
Compatible with MSA compliant equipment from Cisco, Ubiquiti, TP-Link, Huawei, Mikrotik, Netgear, Supermicro
Low power consumption and low EMI emission design; Hot-pluggable with advanced ESD protection
Up to 300m transmission distance for 1000BASE-SR 10 Gigabit Ethernet over fiber applications. Convenient and cost effective 2-pack for use in the data room or on the go

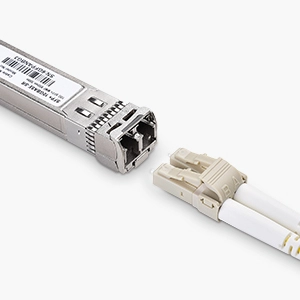

Compatible with both 62.5um and 50um LC cables. It supports OM1, OM2, OM3, and OM4 fiber cables
