- Plug & Play installation, no software drivers required.
- Extend & split with an inexpensive network switch.
- Add up to 8 total displays with additional receivers (Model 103002R).
- Reliable AC powered HDMI Receiver.
High Definition Video
- Supports up to 1080p.
- LCPM, DTS Digital, Dolby Digital audio.
- No separate audio cable required.
- Compatible with HDCP compliant equipment.
- Integrate with an HDMI switch, splitter, or matrix.
Reliable Transmission & IR Control
- Includes IR Tx & Rx cables.
- Uses your existing HDMI source remote.
- Control the video from the display location.

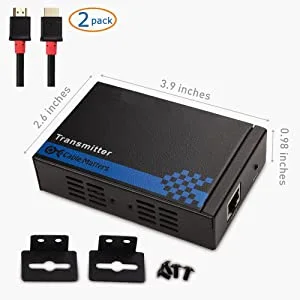

Surface Mountable
- Weighs less than 8 oz.
- Mounts with included brackets.
- Includes 2-pack 4K rated HDMI Cables.

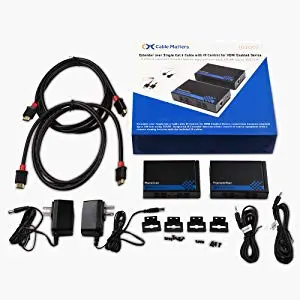

Package Contents
1 x HDMI Transmitter & Receiver.
2 x HDMI Cables (6').
2 x 5V DC Power Adapter (5').
1 x IR Transmitter & Receiver (5').
4 x L Mounting Brackets & 16 x Mounting Screws.
1 x User Manual.
Features
300 FOOT EXTENSION - The HDMI over Cat6 extender extends any audio/video HDMI connection up to 300 feet between an HDMI source computer, Blu-ray player, media streamer, or gaming console to an HDMI display HDTV, monitor or projector over a single Cat6 network cable; Extender boxes are surface mountable with included brackets and screws

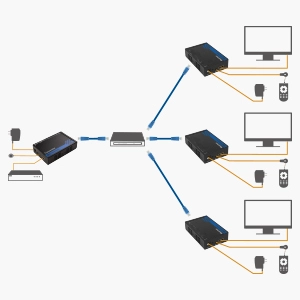

DIGITAL INTEGRITY MULTIPLIED - Connect directly or through a network switch over Cat6 cabling using the TCP/IP protocol with digital transmission that ensures the signal integrity; Connect additional displays by adding Receiver Boxes for the HDMI Extender (sold separately) through a dedicated network switch
REMOTE CONTROL & BONUS HDMI CABLES - Control a DVD player or other HDMI video source from a remote location with the included IR cables that forward commands over a dedicated DDC channel for convenience and security. Bonus 2-Pack High Speed HDMI cables ensure compatibility
VIBRANT VIDEO & AUTHENTIC AUDIO - The HDMI over Ethernet extender supports video resolutions of 1080p/1080i/720p/576p/576i/480p/480i at 50/60 Hz
AC POWERED HDMI Extender eliminates voltage drop with low-power HDMI ports to increase the connection distance; HDMI Repeater chipset provides auto adjustment of signal feedback, equalization, and amplification for an error-free transmission; Plug & Play without any dip switch settings; Sturdy metal enclosure provides durability and minimizes EM/RF interference
